X86 Based Network Appliance
The X86 architecture provides comprehensive computing performance, and has excellent performance in network throughput performance, cryptographic calculation and storage.
Gateway provides platform products with various performances and uses according to market demand, which are suitable for various purposes such as cloud computing, network security, edge computing, industrial gateways, and uCPE.

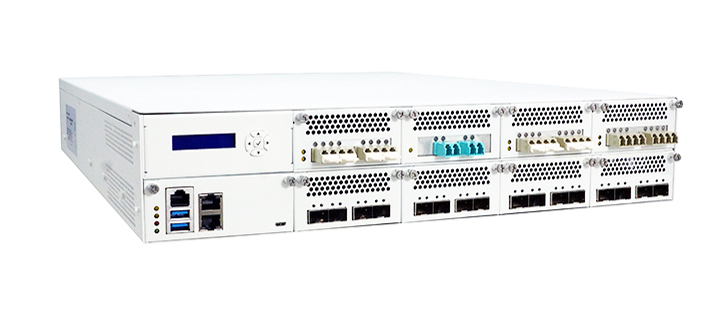

SCB-1932 Dual 3rd Gen Xeon Scalable Network Appliance
2U Rackmount Dual 3rd Gen Intel Xeon Scalable Processor (Ice Lake-SP) and Intel® C621A/C627A PCH Network System, support DDR4 RDIMM/LRDIMM and Intel Optane up to 6TB, 8x PCIe Gen4 x8 slots for Network Expansion Module, 2x easy-swappable 2.5”SATA HDDs/SSDs, IPMI, USB 3.0, 2x 1GbE, 1x Console, CF/mSATA/miniPCI-E, M.2, Redundant PSU.
SCB-1933 Single 3rd Gen Xeon Scalable Network Appliance
2U Rackmount Single 3rd Gen Intel Xeon Scalable Processor (Ice Lake-SP) and Intel® C621A PCH Network Appliance, support DDR4 RDIMM/LRDIMM and Intel Optane up to 3TB , 8x PCIe x8 slots for Network Expansion Module, 2x easy-swappable 2.5” SATA HDDs/SSDs, IPMI, USB 3.0, 2x 1GbE, 1x Console, CF/mSATA/miniPCI-E, M.2, Redundant 550W PSU
SCB-1928 Dual Xeon Networking System
High-End 2U Rack-mount Dual Intel® Skylake SP / Cascade Lake SP Xeon® scalable series Processor with Intel® C621 PCH Networking System, support DDR4 up to 768TB(per CPU), 8x PCIe x8 slot for Expansion Lan Modules, 1x PCIe x16 Rear Expansion Slot, 2x USB2.0, 2xGbE, 1x Console, m-SATA, 2x 2.5″ Hot-swap HDD/SSD, Redundant PSU
SCB-1921B Single Xeon Networking System
2U Rack-Mount Network Appliance with Dual 2nd Gen Intel Xeon Scalable Processors with Intel C624 PCH Network System, support DDR4 up to 768GB, 8x PCIe x8 slot for expansion LAN module, 2x 2.5” SATA HDD/SSD with Hot-Plugging, IPMI, 2x USB 3.0, 2x GbE, Console, CF, mSATA, M.2, PCIe x16 slot, Redundant PSU

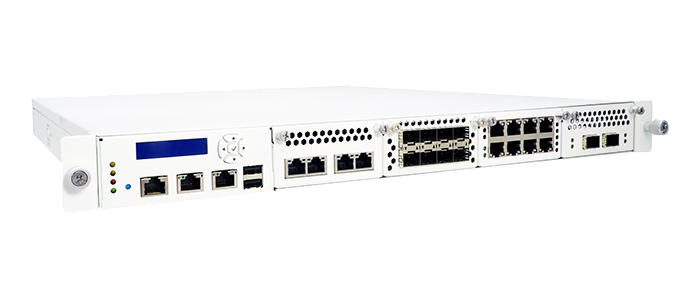

SCB-1821 Mainstream Networking System
The SCB-1821 is a 1U Rack-Mount networking system which is developed based on Intel® Xeon® E Family(Coffee Lake-S)/ 8/9th Core i7/i5/i3 processors. The SCB-1821 supports dual channel DDR4 Non-ECC, un-buffered DIMM and maximum memory capacity is up to 64GB. With 24 PCI Express lanes, the SCB-1821 can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/25/40 Gigabit fiber, Gigabit copper with BYPASS function or not.
SCB-1707 Value Networking System
The SCB-1707 is 1U Rack-Mount high-performance networking system which is based on Intel® Atom™ C3000 processor family. This new generation platform provides highly CPU computing power that CPU cores up to 16 cores, supporting Intel® Quick Assist Technology, standard PCIe slot, expansion Ethernet module, SATA3 and USB3.0.The SCB-1707 is enhancement in computing performance, system responsiveness with Intel® Atom™ Processor, supporting four DDR4 2400MHz UDIMM/ECC UDIMM/RDIMM and maximum memory capacity is up to 256 GB.

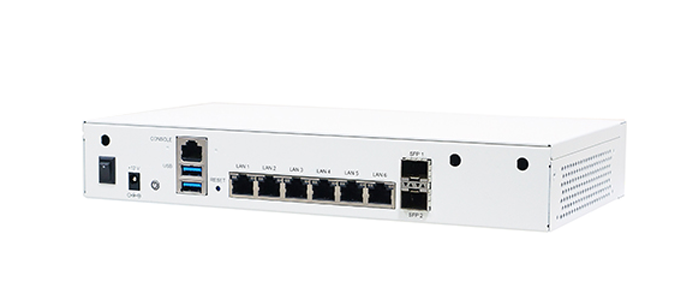

SCB-6995 uCPE/SD-WAN System
Desktop system with Intel Atom C3000 series CPU with 2x DDR4 (with ECC) 2400MHz SO-DIMM, 2x USB3.0, 1x SATA III, 1 x M.2, 1x mSATA, eMMC (optional), 1x mPCIe, TPM 2.0 (optional), 6 x RJ45 GbE and 2x 10GbE SFP+ port.
