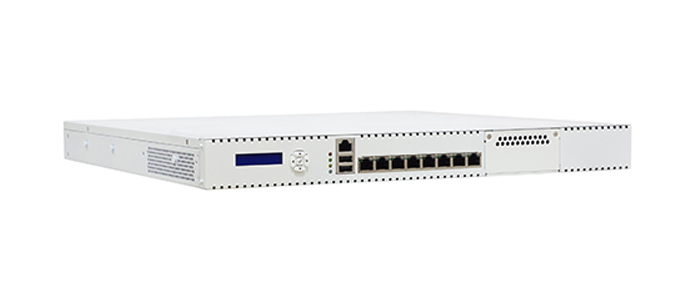

SCB-1707
◆ Intel® Atom C3000 (Denverton-NS) Processor
◆ 2-channel, DDR4 2133/2400MHz memory, up to 256GB
◆ 6x RJ45 GbE ports, 4*SFP Ports, support 2x NIC expansion modules
◆ 2x USB 2.0, 2.5″/3.5″ SATA HDD bay, CF/mSATA socket and Console port
◆ Intel® Quick Assist for Cryptographic Hardware Acceleration
CPU | Intel® Atom C3000 (Denverton-NS) Processor |
Chipset | SOC Integrated |
QAT | Intel® Quick Assist for Cryptographic Hardware Acceleration |
BIOS | AMI UEFI BIOS |
TPM | — |
Technology | DDR4 2133/2400MHz Dual-channel |
Max Capacity | 256 GB |
Socket | 4 DIMM socket |
ECC Support | — |
Controller | 2x Intel i210-AT, 1x Intel i350-AM4, 1x Marvell 88E1543 |
Ethernet Port | 6x RJ45 and 4 SFP ports |
NIC Module Slot | 2 |
IPMI | N/A |
PCIe | N/A |
Mini PCIe | N/A |
M.2 | N/A |
HDD/SSD | 2x 2.5″ Bays |
Flash Socket | CF type II / M-SATA |
Reset Button | 1 |
LED | Power/HDD/Status |
Console | 1 |
USB | 2x USB 2.0 |
LCM | 128 x 32 pixels LCM |
Graphics | N/A |
Power Input | AC 90~264V |
PSU | ATX Redundant 300W PSU |
Operational Temperature | 0 ~ 40°C |
Dimension (W x D x H) | 440mm (W) x 480 mm (D) x 88mm (H) |
Weight | 7.5kg |
