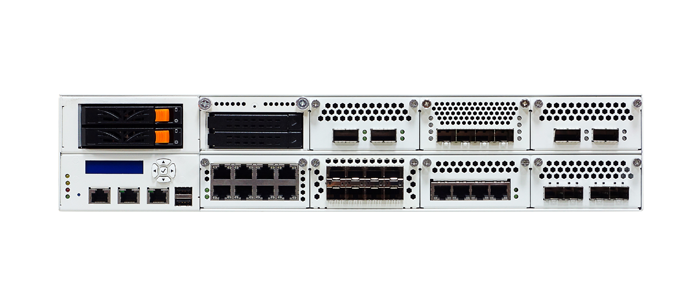

SCB-1928
◆Dual Intel® Skylake SP / Cascade Lake SP Xeon® scalable series Processor,LGA3647
◆ 8-channel DDR4 ECC/Registered 2933 MHz memory, Max up to 768TB(per CPU)
◆ 8x PCIex8 slot for Expansion Lan Modules (A Sku Only)
◆ Support BMC on board
|
CPU |
2 x 2nd Gen Intel® Xeon® Scalable Processor family |
|
|
Socket |
LGA3647 |
|
|
Chipset |
Intel® Lewisburg C621 PCH |
|
|
QAT |
Intel Quick Assist Technology (By SKU) |
|
|
BIOS |
AMI UEFI BIOS |
|
|
TPM |
TPM 2.0 module(Option) |
|
|
Technology |
DDR4 2400/2666MHz |
|
|
Max Capacity |
768GB |
|
|
Socket |
32 x 288-pin RDIMM |
|
|
ECC Support |
Yes |
|
|
Controller |
2x Intel i210-AT |
|
|
Bypass |
– |
|
|
Ethernet Port |
2x RJ45 8 |
|
|
NIC Module Slot |
||
|
IPMI |
Option |
|
|
PCIe |
2x PCIe x16 |
|
|
mPCIe |
– |
|
|
M.2 |
1 |
|
|
HDD/SSD |
2x 2.5″ Bays |
|
|
Flash Socket |
1x mSATA or CF type II |
|
|
Reset Button |
1 |
|
|
LED |
Power/HDD/Status |
|
|
Console |
1 |
|
|
USB |
2x USB 3.0 |
|
|
LCM |
21 x 4 character LCM |
– |
|
Graphics |
1x VGA |
|
|
Power Input |
AC 90~264V |
|
|
PSU |
ATX Redundant 800W PSU |
|
|
Operational Temperature |
0 ~ 40°C |
|
|
Dimension (W x D x H) |
440mm (W) x 600 mm (D) x 88mm (H) |
|
|
Weight |
19kg |
|
