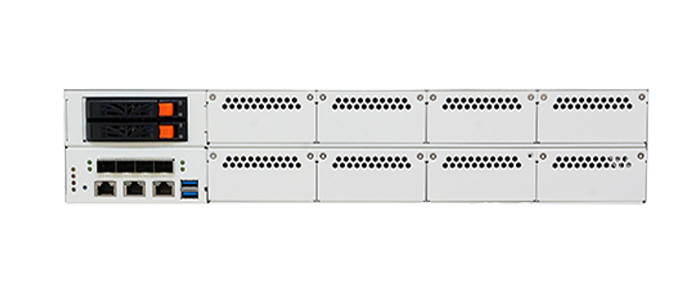

SCB-1932
◆ Support Dual 3rd Gen Intel® Xeon® Scalable Processors, LGA4189
◆ Support up to 6TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® Optane Persistent Memory 200 series
◆ 2x RJ45 1GbE ports, 8x PCIe Gen4 Expansion Module bays, or 2x FHFL PCIe Gen4x16 slots & 4x PCIe Gen4 Expansion Module bays
◆ Support BMC/IPMI & hardware One-Key Bypass function
| CPU | Support Dual 3rd Gen Intel Xeon Scalable Processor(Ice Lake-SP), Socket P+ | |
| Socket | LGA4189 | |
| Chipset | Intel® Lewisburg C621A/C627A PCH | |
| QAT | Intel QuickAssist Technology (By SKU) | |
| BIOS | AMI UEFI BIOS | |
| TPM | TPM 2.0 module (option) | |
| Technology | Total 16 DIMMs (8 channels per CPU, 1x DIMM per channel, 8 DIMMs per CPU) –DDR4 RDIMM/LRDIMM up to 3200 MHz, up to 256GB per DIMM –Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM | |
| Max Capacity | RDIMM/ LRDIMM + DCPMM up to total 6TB | |
| Socket | 16 x 288-pin RDIMM | |
| ECC Support | Yes | |
| Controller | 2x Intel i210-AT | |
| Bypass | – | |
| Ethernet Port | 2x RJ45 | 2x RJ45 |
| NIC Module Slot | 4 | 8 |
| IPMI | YES | |
| PCIe | 1x PCIe x8 (option) | 1x PCIe x8 (option) |
| mPCIe | – | |
| M.2 | 2 | |
| HDD/SSD | 2x 2.5″ Bays | |
| Flash Socket | 1x mSATA or CF type II 2x M.2 2280 | |
| Reset Button | 1 | |
| LED | Power/HDD/Status | |
| Console | 1 | |
| USB | 1 x USB 3.0 | |
| LCM | 128*32 LCM 5 buttons keypad (option) | |
| Graphics | 1x VGA | |
| Power Input | AC 90~264V | |
| PSU | 850W/1300W/1600W Redundant power supply (CRPS), 12V output / RoHS | |
| Operational Temperature | 0 ~ 40°C | |
| Size | 440mm (W) x 600 mm (D) x 88mm (H) | |
| Weight | 19kg | |
