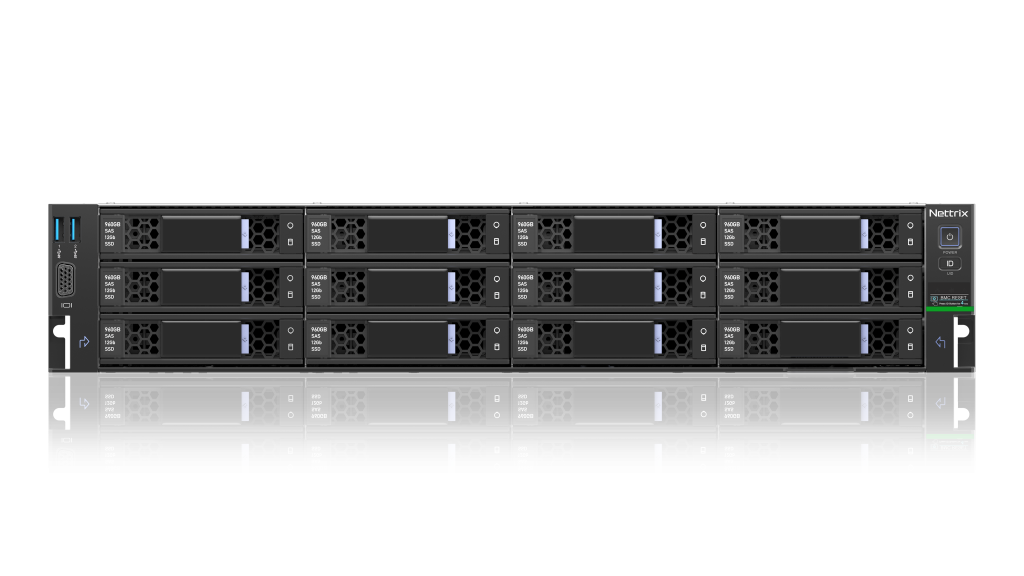

X620 G40
The 3rd generation of Intel® Xeon® Scalable processor is used for Nettrix X620 G40 as the platform. It supports PCIe 4.0 high-speed bus technology while improving performance, and is perfectly adapted to all types of latest GPU accelerator cards. It is an ideal AI reasoning computing platform. At the same time, X620 G40 can also perfectly meet the multi-purpose requirements of desktop virtualization, cloud gaming, and video stream transcoding. X620 G40 can be regarded as the best pronoun for one specialization and multiple capabilities
Powerful performance and flexible expansion
■ Supports the third generation of smart Intel® Xeon® Scalable processors ■ The newly upgraded high-speed PCIe 4.0 bus gives full play to GPU computing power ■ 12 3.5-inch/2.5-inch expansion extents provide a single machine with a storage capacity of more than 100T
Flexible computing support platform
■ Large-capacity memory + 8 GPU accelerator cards, providing strong comprehensive processing capabilities for AI online reasoning ■ Supports GPU-assisted CAE and high-dominant frequency processors for scientific computing ■ Supports dozens of design cloud desktop concurrency and graphics rendering ■ Supports all kinds of cloud games, video stream transcoding with a professional GPU acceleration solution
Intelligent management, green energy saving
■ For large-scale data centers, it provides an open management platform that fully covers the health status monitoring and reporting functions of key components with multiple management protocols such as RedFish, IPMI and SNMP, to guarantee the operation and maintenance of data centers ■ Green and energy-saving design, high-efficiency and energy-saving intelligent speed regulation, especially providing different operating characteristics and environments of GPU with optimized overclocking, balanced power consumption, green energy-saving and other working modes
Technical Specifications
Form
2U rack-mounted server chassis
Processor
Supports 2 third-generation intelligent Intel@ Xeon @ scalable processors
Chipset
IntelC621 A series chipset
RAM
32 DDR 4 memory slots, up to 3200 MHz, support for multiple protection modes such as memory ECC, memory mirroring and memory hot backup; compatible with 16 DCPM M memories, up to 3200MHz
Storage controller
Supports pass-through’ RAID0, 1, 10, 5, 50, 6, 60 and other storage solutions; when configuring RAID controllers, supports Cache super capacitor protection, provides RAID level migration, disk roaming, self-diagnosis, Web remote settings and other functions
Local storage
Front: Supports up to 12 3.5-inch or 24 2.5-inch hard drives, and compatible with up to 24 NVMe hard drives Built-in: 2 SATA∕PCIe M.2*1 onboard EMMC chip
Network
Network card: 1 OCP3.0, with NCS1 function OCP3.0 optional 2*1GE’2*10GE’2*25GE’2*100GE’ 2*200GE and other interfaces
PCI-E expansion
A maximum of 10 PCIe expansion slots can be configured, including 1 dedicated hard disk controller slot and 1 OCP slot, supporting 8 PCIe4.0 standard slots
GPU expansion
Max 4 PCS GPU card, including but not limited to
NVIDIA® A800
NVIDIA® A40
NVIDIA® A10
NVIDIA® Tesla® T4
Other ports
1 RJ-45 management interface, located at the rear of the chassis 2 USB3.0 ports, located at the rear of the chassis, and the front of the chassis can be equipped with two USB3.0 or USB2.0 ports optionally. 1 VGA port, located at the rear of the chassis, optional to support front VGA 1 optional serial port, located at the rear of the chassis
Power supply
Optional 1600W or 2000W CRPS high-efficiency platinum power supply, supports 1+1 redundancy, voltage range 100-240Vac (please refer to the power input value on the nameplate label of the host)
Management function
Integrated with BMC chip, provides 1 Gbps RJ45 management port externally, and supports Redfish, SNMP, IPMI2.0 and other standard interfaces; The remote management interface based on IKVM∕HTML5 provides comprehensive fault diagnosis, automated operation and maintenance, and remote management functions
Graphics card
Integrated display controller, resolution 1920×1080
Operating System
For the details of Microsof®WindowsServe, RedHatEnterpriseLinuX, SUSELinuxEnterpriseServe, Ubuntu, etc.,
Operating temperature
5℃~35℃ at work
Chassis specification
87.8mm (height) ×446mm (width) ×794mm (depth)
Full configuration weight
40kg
